Marking Up Compliant Designs To BS5839 Doesn't Have To Be So Time Intensive
Take back your time & freedom with FIRE3D
Pre-loaded With All Major UK Brands
Use FIRE3D's preloaded devices or add your own preferred devices along with your per-unit device costs for accurate design costs and quotes
Check Out A Few Of Our Awesome Features
See the Fire3D AI engine calculating coverage for point & beam detection, sounders & MCPs.
"Fire3D’s software has made producing fire alarm zone charts so much easier for us as a company.
The quick and easy-to-use platform not only
speeds up the creation process
but also ensures our charts are fully compliant with British Standards."
Millimetre Perfect Coverage Checks
See in real time the total coverage of all devices across your design. FIRE3D uses the structural features in your floorplan to identify any coverage gaps in your designs; save hours of complex manual calculations and safeguard against over and under coverage.
Detector Spacing
We check the coverage of detectors and beams and show you any areas you've missed.
We check the building structure and how it is affecting your total coverage.
We check the effect of AC/HVAC, obstructions, Apexes & differing ceiling types, mounting depths, heights and many more.
We check room types, locations and risk assessment category to decide if detectors are needed.
Sounders & VADs
We check ambient room noise, sounder decibels, sounder height and sound attenuation through doors
We check for room-specific requirements such as high noise level rooms and bedrooms
We check ambient light levels, daylight compensation, direct and indirect classifications and obstructions to line of sight
We check mounting heights, light output shapes and Open class EN54 VAD classifications
MCP & Zone Search
We check all possible routes on foot in a building & calculate any areas over 45m from a call point
We check all exits to ultimate safety, high-risk rooms & storey exits for call points in close proximity
We calculate all areas not visible after 60 metres of travel from any zone entry point
...And Many More BS5839 Compliance Tests
Try for freeAuto Generated Job Documents
Get Quotes, Specifications, As Fitted Drawings, Zone Plans, Device Quantiy Totals & Device Coverage Summaries with the click of the mouse.
System Designer
User friendly design interface for fast and accurate designs. Get Started and produce a fully compliant design in a little as 15 minutes.
-
Design Full Systems in as little as an 15 minutes
-
BS5839 Compliant Designs you can trust. Protect your business and reputation.
-
No training needed. FIRE3D ensures all the fine detail is covered and compliant.
Auto Generated Install Specifications
Professional PDF FIRE3D specifications and device schedules to accompany FIRE3D engineering drawings.
-
Clear descriptions of device locations with references to drawing numbers and device numbers for easy cross referencing on site
-
Device specifics on a location by location basis to ensure the correct equiptment is fitted in the correct place
-
Helpful BS5839 extracts for installers to ensure compliant design translates to compliant systems on handover
Auto Generated As Fitted Drawings
Professional PDF As Fitted Drawings are automatically produced by FIRE3D ready for handover.
-
Professional engineering drawings produced at the click of a button
-
PDF format drawings instantly available to supply to Install staff or contractors
-
Clear and understandable Drawings and Legends. Devices referenced by number to the specification.
Auto Generated Zone Plans
Professional PDF Zone plans are automatically produced by FIRE3Ds algorithms ready to be framed and mounted.
-
Automatic Professional Zone Plans that will knock the socks off your competition
-
No further work required to produce saving you time and money
-
PDFs generated automatically ready to print and frame
Auto Generated Coverage Summaries
Professional PDF Coverage Summaries showing total coverage in a floor plan. Show coverage for Detection, Sounders, MCPs & VADs.
-
Professional Coverage Summaries that will knock the socks off your competition
-
Win more work by visually showing clients their non-compliances on site
-
Show total site coverage giving clients confidence in the installation
System Designer
AI Assisted Design

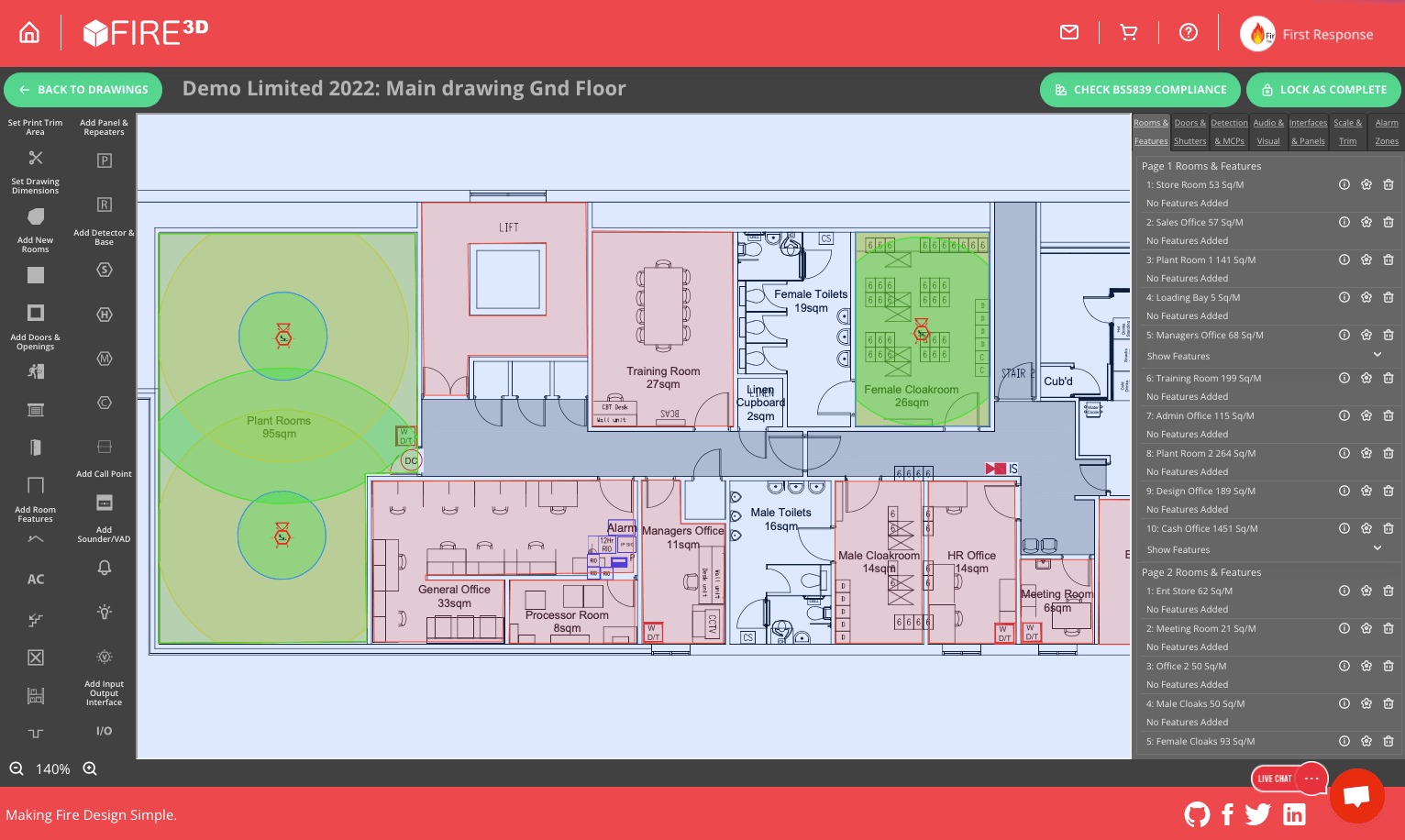

It's very easy to start using FIRE3D. Upload a PDF floorplan, mark out the rooms and let FIRE3D calculate the required coverage to be BS5839 compliant.
-
User friendly interface to mark out floorplan and exits
-
On the fly detector coverage calculations for best placement
-
On the fly sounder and visual alert device coverage calculations
-
MCP coverage calculations and required placement tests
-
Zone search distance tests to comply with BS5839
-
Intelligent Risk assessment category aware coverage tests
Auto generated specifications
Instant specifications
Professional specifications automatically generated saving hours of work
-
Auto generate full professional specifications
-
Auto generate complete equipment scedules
-
Numbered drawing to specification equipment references
-
Clear & easy to understand language
Auto generated drawings
Instant Design Drawings
Professional drawings automatically generated saving hours of work
-
Auto generate professional engineering drawings
-
All devices referenced back to equipment schedule
-
Clear legend iconography for fast device referencing
-
Compliance Guarenteed
-
Save £££ on expensive design fees
-
All drawings securly stored on the FIRE3D cloud
Auto generated zone plans
Instant Zone Plans
Professional Zone Plans automatically generated saving hours of work
-
Multiple Location 'You are Here' Zone Plans automatically generated
-
Compliance Guarenteed
-
Save £££ on expensive design fees
-
All Plans securly stored on the FIRE3D cloud
Coverage Summaries for all devices
Show coverage and non-compliances
Professional Coverage Plans automatically generated helping to win more work
-
See exact scale coverage for Detectors, Sounders, Call Points and VADs
-
Compliance Guarenteed
-
Generate new work based on non-compliances
-
All Plans securly stored on the FIRE3D cloud
Produce Winning Quotes & Estimates In A Fraction Of The Time
Say goodbye to missed opportunities because you don't have enough time. Our fast design turnaround means rapid quotes, rapid tenders and more time for business development & growth.
-
Supercharge Profits And Win More Work
-
Pitch 100% of invited Quotes and Tenders
-
We Understand BS5839 Regulations and meet their requirements
-
We are cost-effective and produce BS5839 compliant designs for a fraction of the normal cost
Check Out A Few Of Our Awesome Features
See the Fire3D AI engine calculating coverage for point & beam detection, sounders & MCPs.
What our customers say about us...
Get Your Zone Plan Today
Make Zone Plans In 10 Minutes
Drag & Drop to make a zone plan yourself in 10 minutes.
-
No need to wait for a designer, get a professional zone chart now
-
Stop paying expensive design fees
-
Stop using complicated design programmes
-
Upload a floorplan or Draw your own
Choose the plan that fits your needs.
No contracts, no hassle, cancel anytime
-
30 Day Free Trial
-
Trial All Features
-
5 Floorplan Uploads / Month
-
1 User Account
-
AI Assisted System Designer
-
Specification Creation Tools
-
Quote Creation Tools
-
Zone Plan Designer
-
Zone Plan Creation Tools
-
Unlimited Floorplan Uploads
-
1 User + 2 Collegue Accounts
-
AI Assisted System Designer
-
Specification Creation Tools
-
Quote Creation Tools
-
Zone Plan Designer
-
Zone Plan Creation Tools
-
Enhanced Support
-
Feature Requests
Got Questions?
We've got answers. Here are some of the most common questions we get about Fire3D.
